Thermador Introduces “Leap Into Luxury” Appliance Packages – Reserve Yours Now

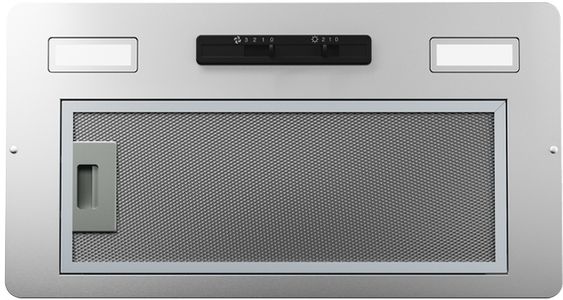

Zephyr Core Collection Tornado Mini ES 21" Stainless Steel Insert Range Hood

Zephyr

Model #:

AK8400BS-ES

Model #: AK8400BS-ES
1288643
Zephyr
$329.00

At a Glance

Product Dimensions 9.56"h x 20.56"w x 11"d

The Tornado Mini ENERGY STAR® power pack is designed with energy efficiency and versatility in mind. This ENERGY STAR®-certified insert has a small footprint that fits under the standard 12” cabinet depth — or choose one of our optional, adjustable-depth, stainless steel liners to accommodate custom hood enclosures from 17-1/2” to 20-1/2” deep.Read More

$329.00

Get to know this product.

Product Overview

Product Overview

Features include dual-level LumiLight LED lights and an ultra-quiet 290-CFM blower controlled by 3-speed mechanical slide controls.

LumiLight LED lighting

Dual-level lighting

Aluminum mesh filter

Mechanical side controls

Optional adjustable-depth liner

Useful Documents
HVAC
Liner Specification Sheet
Liner Manual
Diagram
Manual
Specification Sheet
Warranty
Specifications

General Specs

Width (in.)20.56
Height (in.)9.56
Duct Size (in.)6" Round
Depth (in.)11
CollectionCore Collection
ColorStainless Steel
SeriesTornado Mini ES
Manufacturer Warranty1 Year Labor / 3 Year Parts
Color Finish NameStainless Steel
Range Hood TypeInsert
ADA CompliantNo
ENERGY STAR CertifiedNo
Outdoor ApprovedNo
Appliance Fit Width (in.)21
Product Weight (lbs.)14
Smart CompatibleNo
Maximum CFM400
Bulb TypeLED
Grease Filter TypeAluminum Mesh
Filter Indicator LightNo
Sones Rating2 - 4.5
Fan Speed Options3
Vent LocationTop
Height Above Cooktop20" - 36"
Ventilation DirectionVertical
Voltage120
Amp1
Frequency60
Range Hood FeaturesDuctless Capable, Light
Noise Level (Sones)Standard - (High)
Ventilation TypeDuctless
WarningProposition 65 Warning for California Residents
